【IT Notes】 CentOS 7 配置 Percona XtraDB Cluster

 XtraDB是Percona公司出的一款開放免費的MySQL系統，前年玩過這個東西後也沒有留下筆記，趁有點時間的時候重新再試做一次，中間果然又遇到很多障礙，後來成功後得要趕緊留下紀錄，不然以後要做又會忘記了。

一‧事前準備 四台VM，基本配備：

4核心CPU、4GB RAM、15GB硬碟
node1: 10.113.112.52     pxc1

node2: 10.113.112.53     pxc2
node3: 10.113.112.54     pxc3
（要先確認彼此都能ping或ssh得到）

二‧防火牆調整通訊port

# firewall-cmd --permanent --add-port={3306,4444,4567,4568}/tcp
# firewall-cmd --reload

三‧關閉SELinux

XtraDB跟SELinux沒有完整相容，所以必須關閉

# vim /etc/selinux/config

SELinux設定為disabled

四‧下載並用root安裝XtraDB

1.四台node都要下載

# yum install -y https://repo.percona.com/yum/percona-release-latest.noarch.rpm yum
# makecache fast

# yum install -y Percona-XtraDB-Cluster-57

2.四台node各自啟動MySQL

# systemctl enable --now mysql.service

# grep 'temporary password' /var/log/mysqld.log

2021-12-30T01:57:55.528469Z 1 [Note] A temporary password is generated for root@localhost: a3wrV-VW&qfe

\\啟動MySQL時會自動產生一個臨時密碼，第一次登入後再去修改密碼

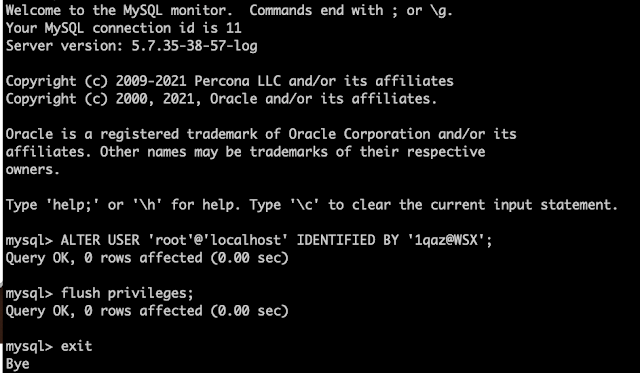

# mysql -u root -pa3wrV-VW&qfe

mysql> ALTER USER 'root'@'localhost' IDENTIFIED BY '1qaz@WSX';

mysql> flush privileges;

mysql> exit

五‧三台node配置複寫的config

1.pxc1、2和3都要停整的配置檔案

# vim /etc/percona-xtradb-cluster.conf.d/wsrep.cnf

2.pxc1要修改的設定

wsrep_cluster_address=gcomm://10.113.112.52,10.113.112.53,10.113.112.54

wsrep_node_address=10.113.112.52

wsrep_cluster_name=pxc-cluster

wsrep_node_name=pxc1

wsrep_sst_auth="sstuser:1qaz@WSX"

3.pxc2要修改的設定

wsrep_cluster_address=gcomm://10.113.112.52,10.113.112.53,10.113.112.54

wsrep_node_address=10.113.112.53

wsrep_cluster_name=pxc-cluster

wsrep_node_name=pxc2

wsrep_sst_auth="sstuser:1qaz@WSX"

4.pxc3要修改的設定

wsrep_cluster_address=gcomm://10.113.112.52,10.113.112.53,10.113.112.54

wsrep_node_address=10.113.112.54

wsrep_cluster_name=pxc-cluster

wsrep_node_name=pxc3

wsrep_sst_auth="sstuser:1qaz@WSX"

六‧啟動複寫

1.node1先帶頭啟動並建立複寫用帳號

# systemctl start mysql@bootstrap.service

# mysql -u root -p

mysql> CREATE USER 'sstuser'@'localhost' IDENTIFIED BY '1qaz@WSX';

mysql> GRANT RELOAD, LOCK TABLES, PROCESS, REPLICATION CLIENT ON *.* TO 'sstuser'@'localhost';

mysql> FLUSH PRIVILEGES;

mysql> exit

2.node2和node3啟動MySQL，加入cluster

# systemctl start mysql.service

3.回到node1檢視複寫狀態

# mysql -u root -p
mysql>show status like 'wsrep%';



mysql>show status like 'wsrep_cluster_size';

4.建立資料表測試複寫

在node1上建立資料庫和資料表

mysql> CREATE DATABASE RECIPES;

mysql> USE RECIPES;

mysql> CREATE TABLE TAB1 (CONTACT_ID INT PRIMARY KEY, CONTACT_NAME VARCHAR(20));

mysql> INSERT INTO TAB1 VALUES (1,'sadegh');

mysql> INSERT INTO TAB1 VALUES (2,'nix');

mysql> INSERT INTO TAB1 VALUES (3,'mamad');

mysql> exit

Bye

再到另兩台node查看有無同步

mysql> USE RECIPES;

mysql> SELECT * FROM TAB1;

複寫成功，XtraDB有正常運作
